Consumer Solutions

Genesi provides a complete system overview, including architecture and implementation documentation with a costed bill-of-materials, recommended & alternative suppliers, and part numbers with package type. Board manufacturing datasets including Gerber and PCBA data and full board and system test packages and procedures are defined. Genesi supplies design, manufacturing, and bringup support, as well as complete system software, including custom user interfaces. Fully documented sources and a recommended binary image are provided.


A standard technology package includes:

  • Product Documentation Structure
  • Drawing Formats (Templates)
  • Numbering System
  • Revision Control System with Engineering and Released Documentation
  • System software that integrates customer specific applications
  • Diagnostic and service management tools that enable after-sale support and service options



EFIKA MX6 Series

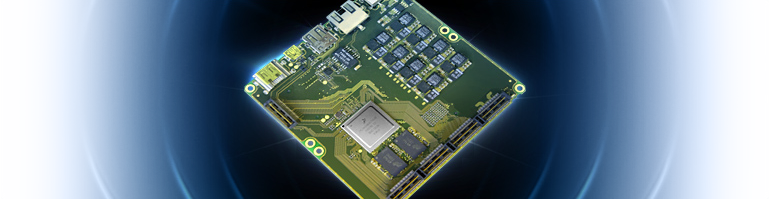

Genesi´s EFIKA MX6 is a low-cost six-layer board design based around the i.MX6 Quad-Core Cortex A9 (ARM) System-on-Chip from NXP. Additionally, the design includes board firmware and an optimized software bundle.

The specifications are as follows:

  • Dimension 100mm * 100mm
  • Cost optimized expandable design with configurable power mgt
  • NXP i.MX6 ARM Quad-Core Cortex A9 @ 1GHz
  • 4GB NAND ( 32 Gb * 8 MLC )
  • 1GB RAM ( 4* 2Gb DDR3 SDRAM @ 800MHz )
  • ARM 32-bit Cortex M3 CPU to control miscellaneous I/O functions
  • USB 2.0 and OTG ports
  • HDMI 1.4 port
  • 10/100 Ethernet port
  • 2x SDHC ports
  • Standard PSU connector 12 volt DC
  • I/O expansion connectors with support for PCIe, SATA, LVDS display, I2C, CSI, GPIO, Serial UART, GigE & JTAG


EFIKA MX53 Series

Genesi´s EFIKA MX53 design and software bundle also remains available. The Efika MX53 was designed to support the netbook market and was licensed for production in Latin America, Africa and Eastern Europe.

The specifications are as follows:

  • Dimension 50mm * 100mm
  • Cost optimized four layer design
  • NXP i.MX53 ARM Cortex A8 CPU @ 1GHz
  • Dialog Semiconductor DA9053 PMIC
  • 16 GB NAND
  • 1 GB RAM ( DDR3 SDRAM @ 800MHz )
  • ARM 32-bit Cortex M3 CPU to control miscellaneous I/O functions
  • Up to 128 key keybord support using 24 pin 1mm pitch FPC connector
  • Cirrus Logic CS42L52 24-bit low-power stereo audio codec
  • Class D speaker amplifier
  • Sagrad W-LAN SG901-1098 IEEE 802.11 B/G/N
  • USB 2.0 connectors
  • LVDS LCD connector and YUV CMOS sensor
  • PS/2 touch interface
  • SD Card connector
  • Mini jack 3.5mm stereo audio connector
  • Battery connector
  • Standard PSU connector 12 volt DC

With its LVDS display output the Efika MX53 creates a solid foundation for consumer and embedded products, including netbooks, tablets, digital signage and energy monitoring solutions. When powered with a 4000mA battery while playing HD content at 1080p a battery life of more than ten hours can be achieved. The design is BOM and production cost optimized.
